OrCAD X Professional Plus

SKU: POX300

OrCAD X Professional Plus includes:

     OrCAD X Capture

     OrCAD CIS

     OrCAD PCB Designer

     HighSpeed Design

     PSpice

     Vendor neutral export IPC-2581

     3D Step file export to CAD

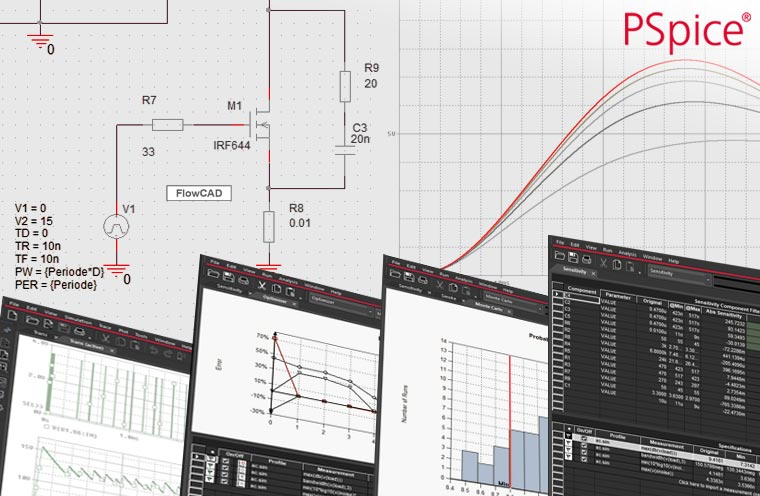

OrCAD Plus is a complete PCB design and simulation suite, combining industry-proven tools for schematic entry, component management, layout, and circuit analysis. It includes OrCAD Capture, a widely adopted schematic editor known for its intuitive interface and support for flat and hierarchical designs. The integrated Component Information System (CIS) streamlines part selection and ensures consistency between design and part databases. At the core of the layout process is OrCAD PCB Designer Professional, featuring one of the industry's most powerful Constraint Managers for precise control over electrical, physical, and manufacturing rules. It supports advanced capabilities such as Constraint Regions, DFM/DFA validation, and high-speed design analysis—including impedance and crosstalk simulation powered by Sigrity Aurora. For circuit simulation, PSpice A/D delivers robust analog and mixed-signal analysis with a user-friendly interface and broad model support from leading IC vendors. Engineers can simulate everything from high-frequency systems to low-power IC designs using behavioral modeling and built-in mathematical functions. Fully compatible with Allegro tools, OrCAD Plus offers a scalable, production-ready environment for developing reliable, performance-critical electronic systems.
